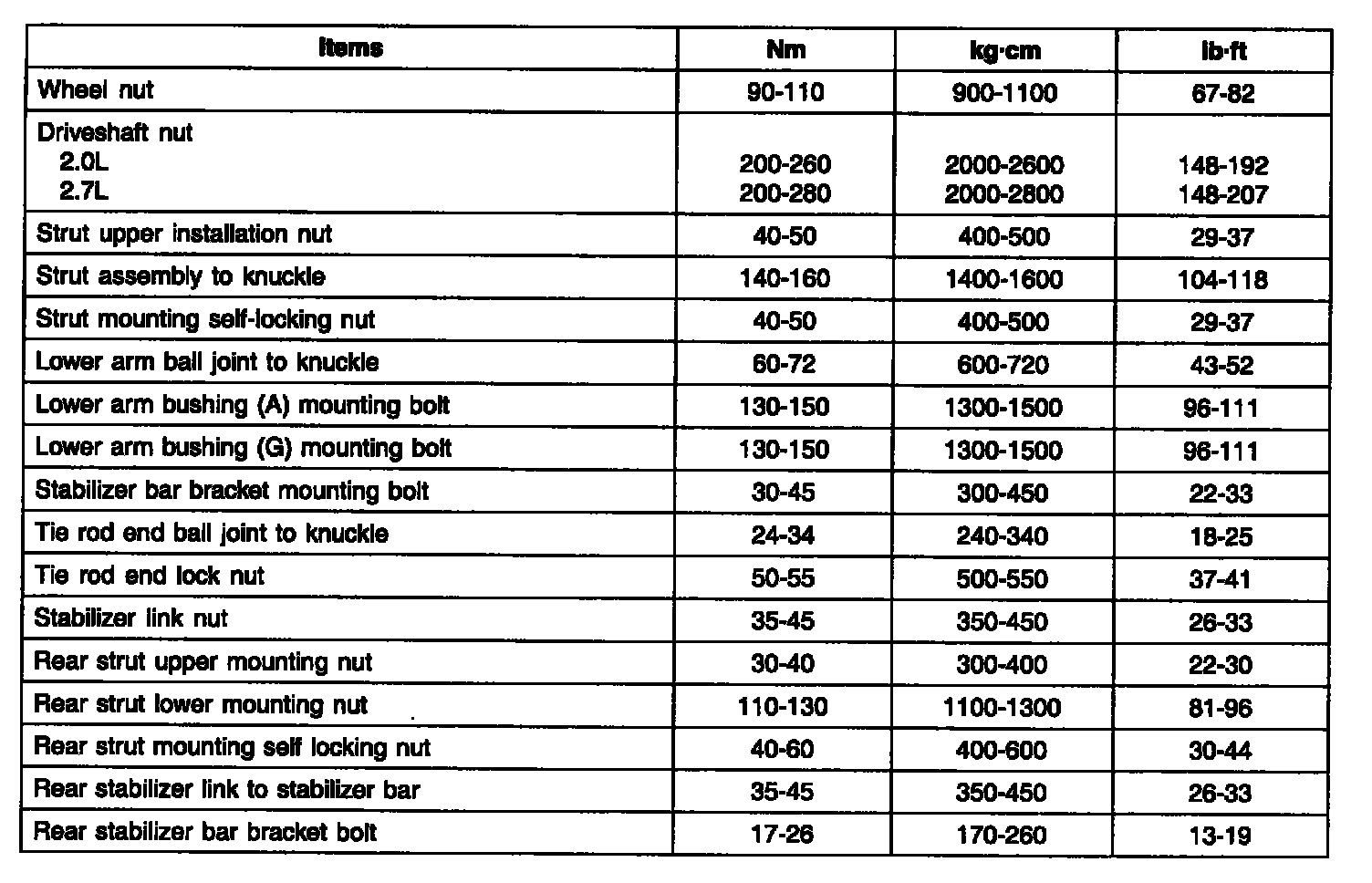

Mechanical Specifications

FRONT SUSPENSION SYSTEM:

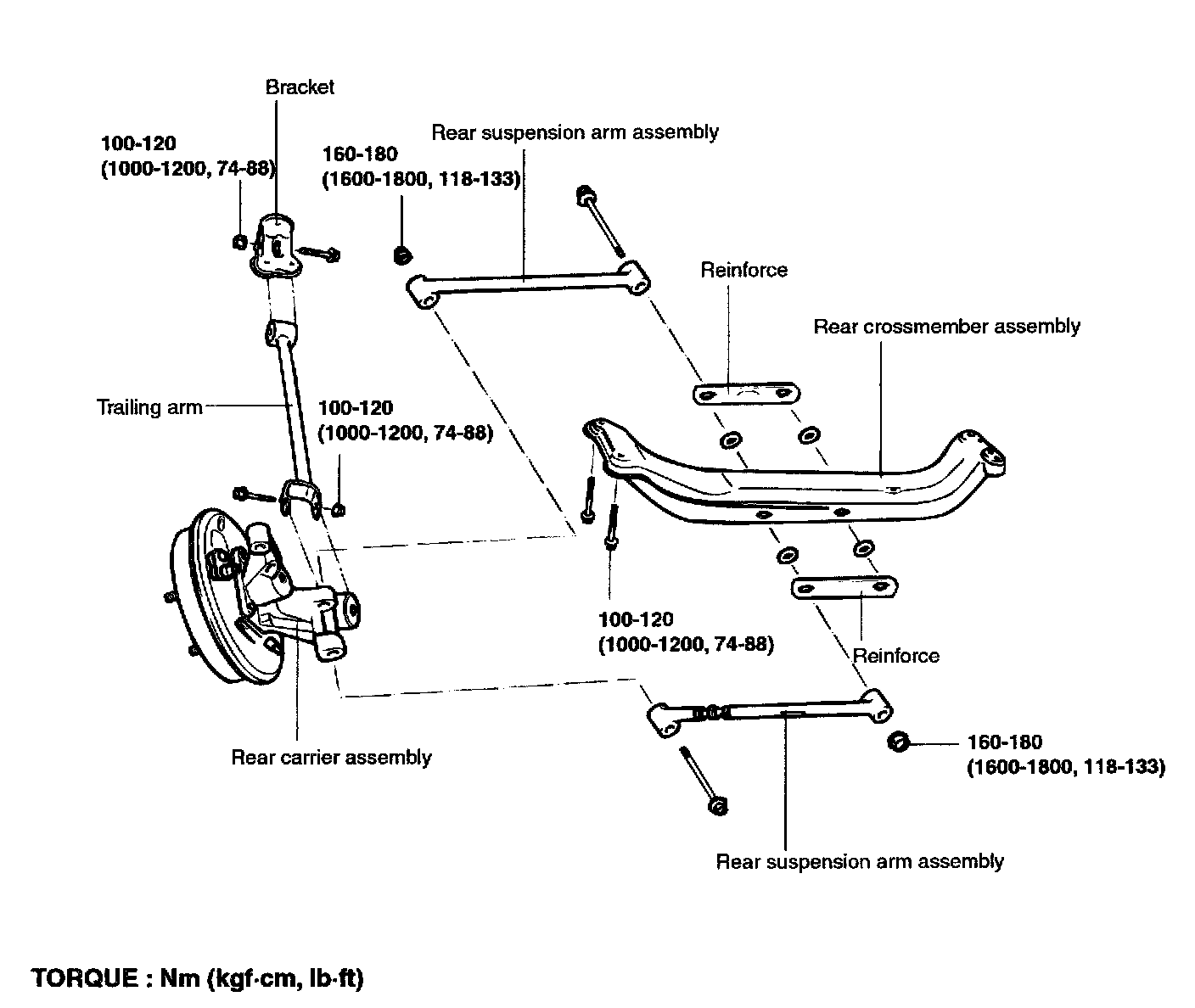

REAR SUSPENSION SYSTEM:

REAR SUSPENSION SYSTEM:

ALIGNMENT and TIRES:

CAUTION: When rotating the "215/45 ZR17" Tires, ensure to follow the "ROTATION" direction marked on the sidewall of tires (See WHEEL ROTATION).

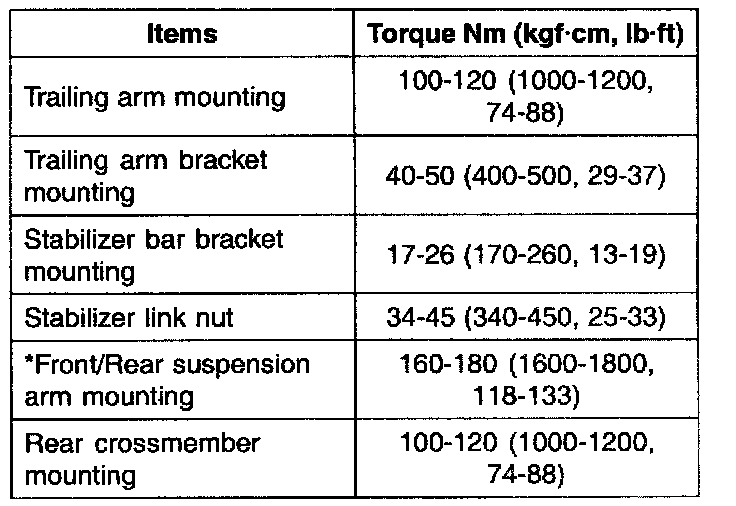

REAR SUSPENSION SYSTEM:

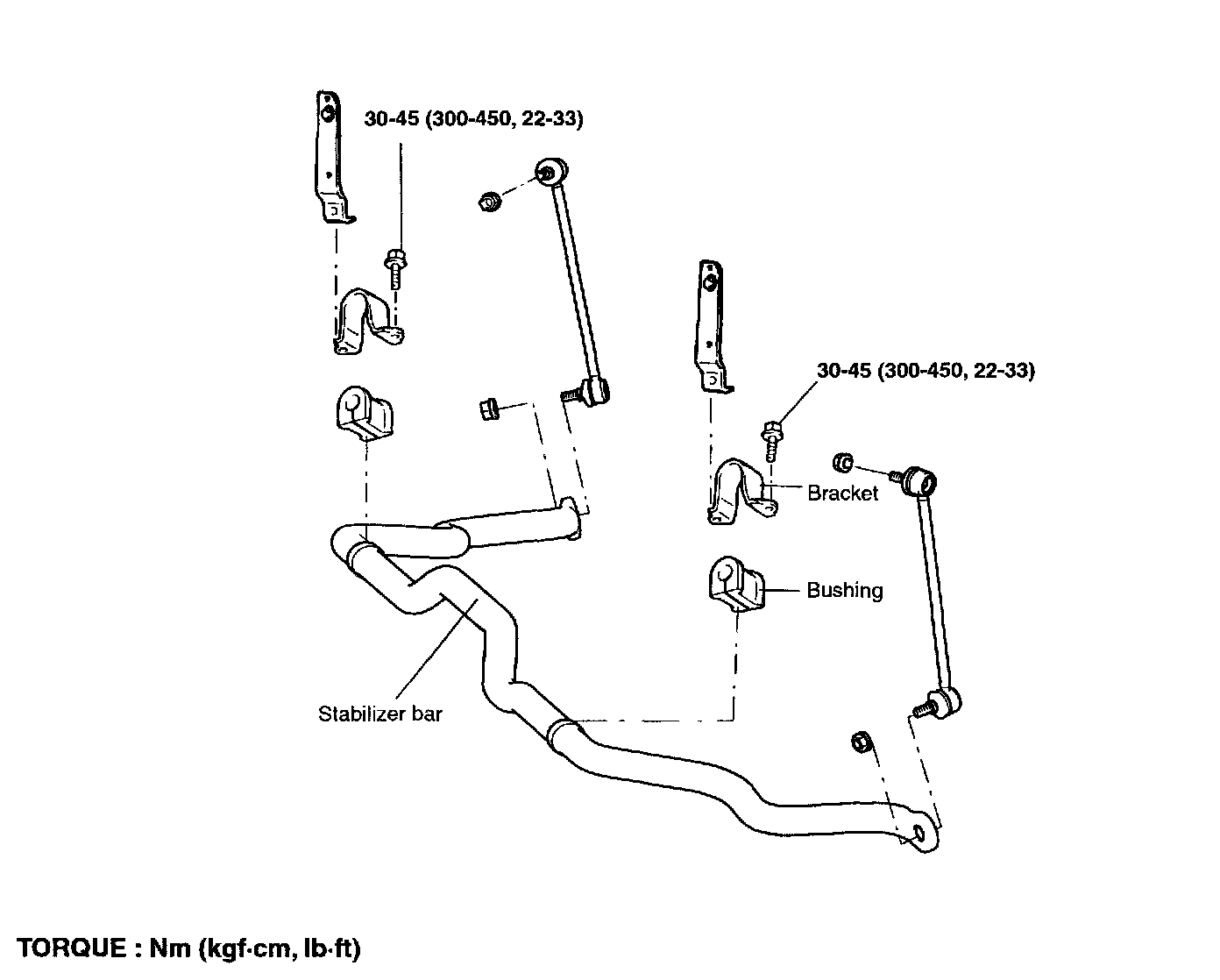

FRONT STABILIZER BAR:

LOWER ARM (Front):

FRONT STRUT ASSEMBLY:

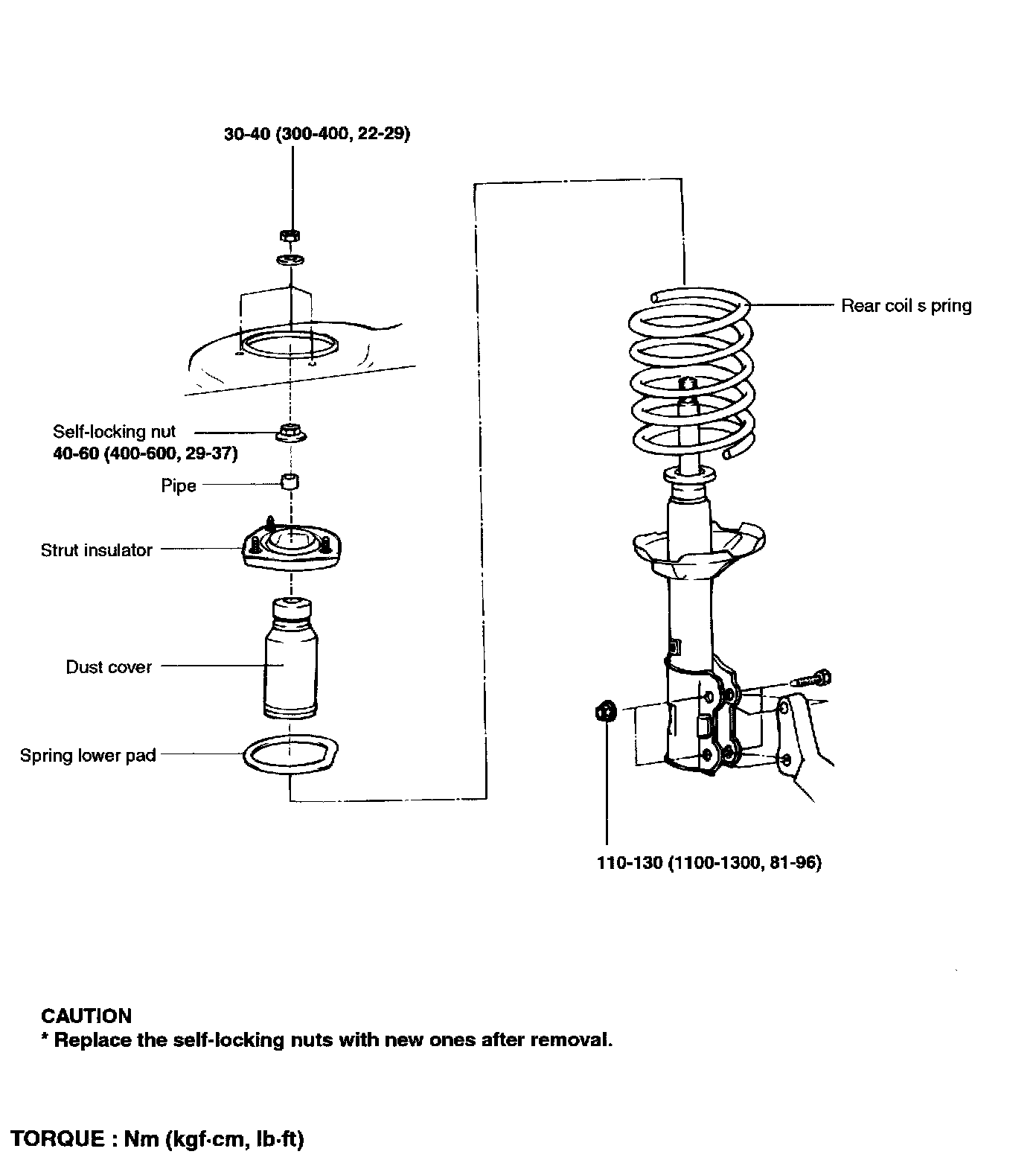

REAR STRUT:

CAUTION: Replace the self-locking nuts with new ones after removal.
