Fuse Block

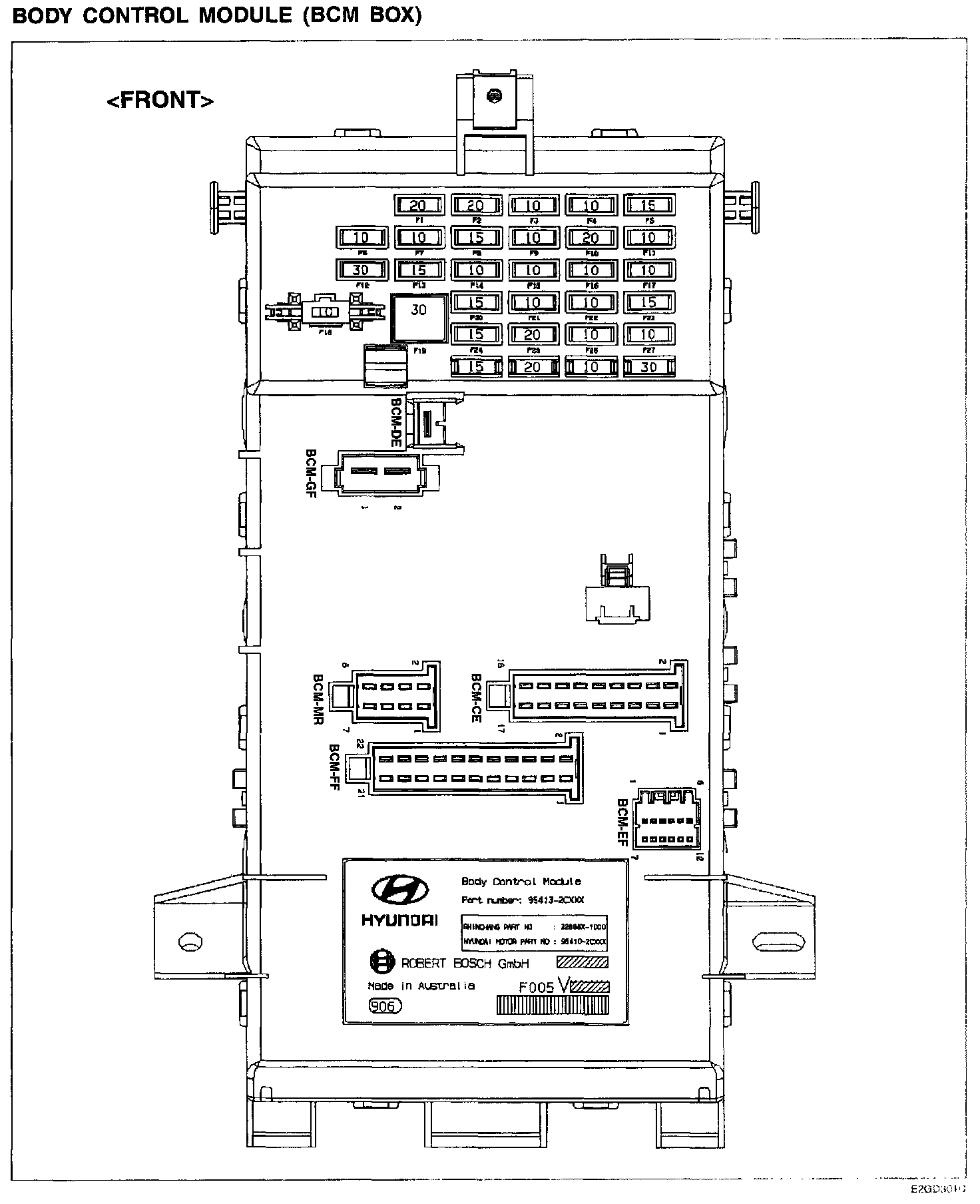

Body Control Module (BCM BOX) Front View:



Body Control Module (BCM BOX) Front View:

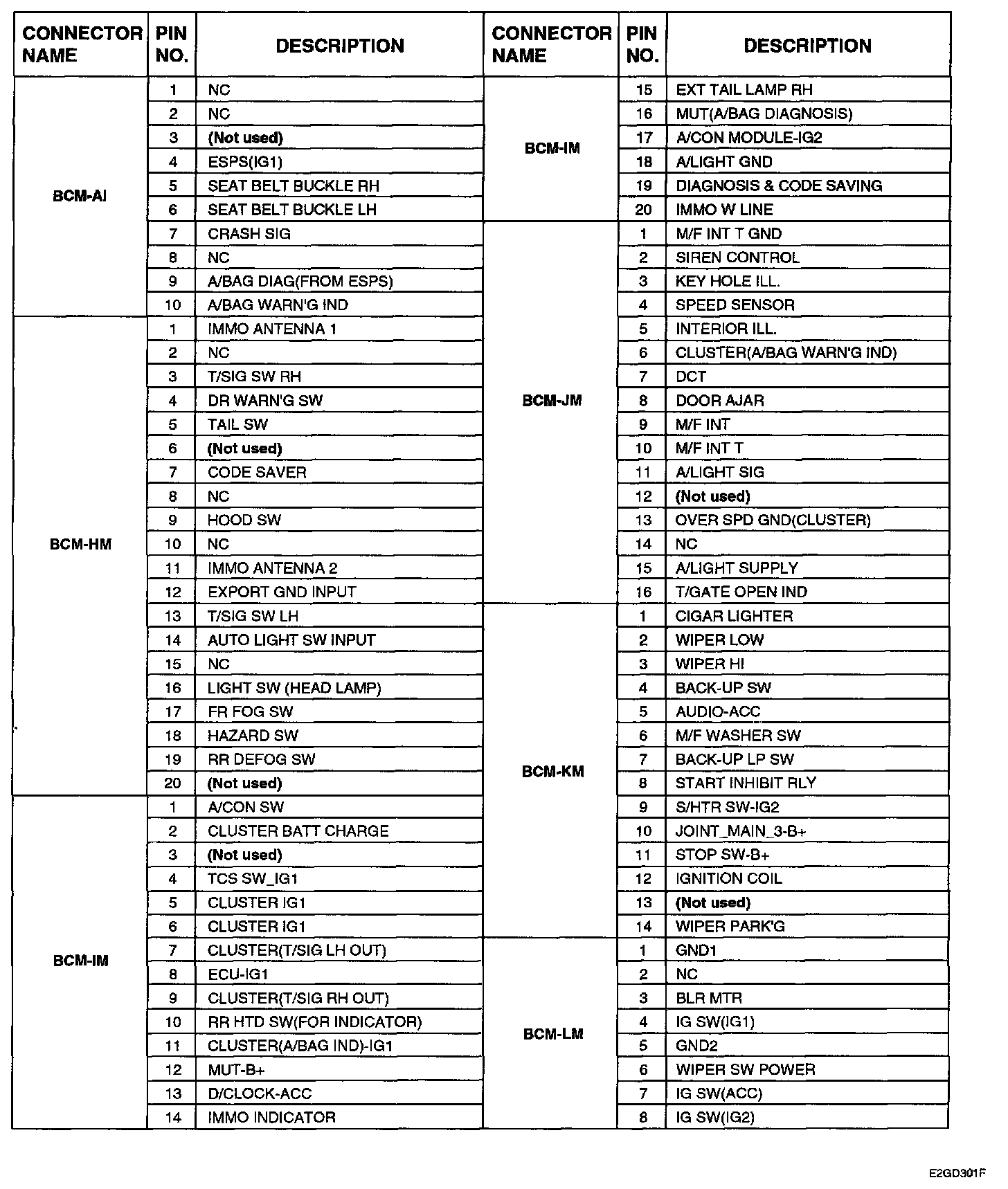

Body Control Module (BCM BOX) Circuit Details:

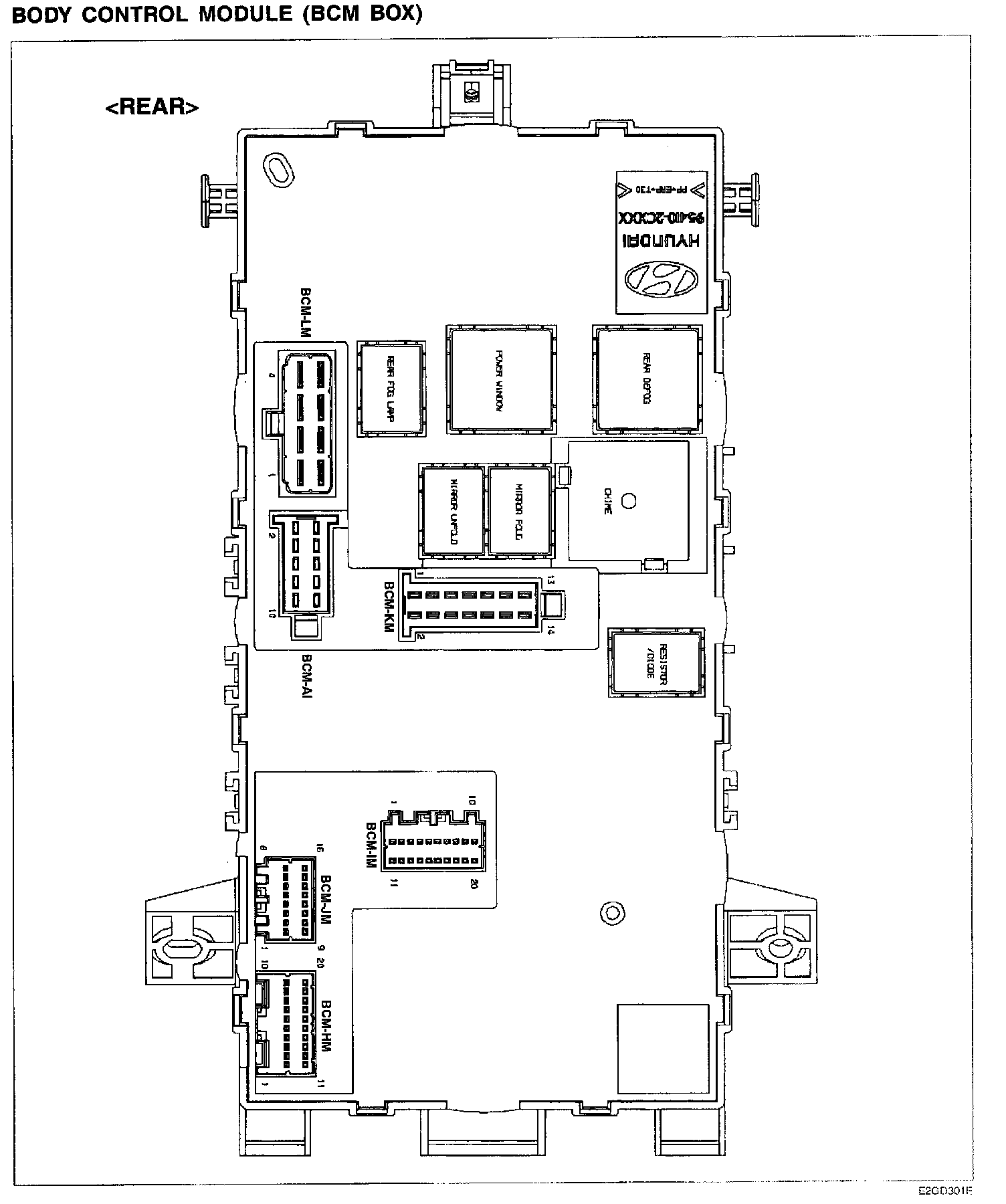

Body Control Module (BCM BOX) Rear View:

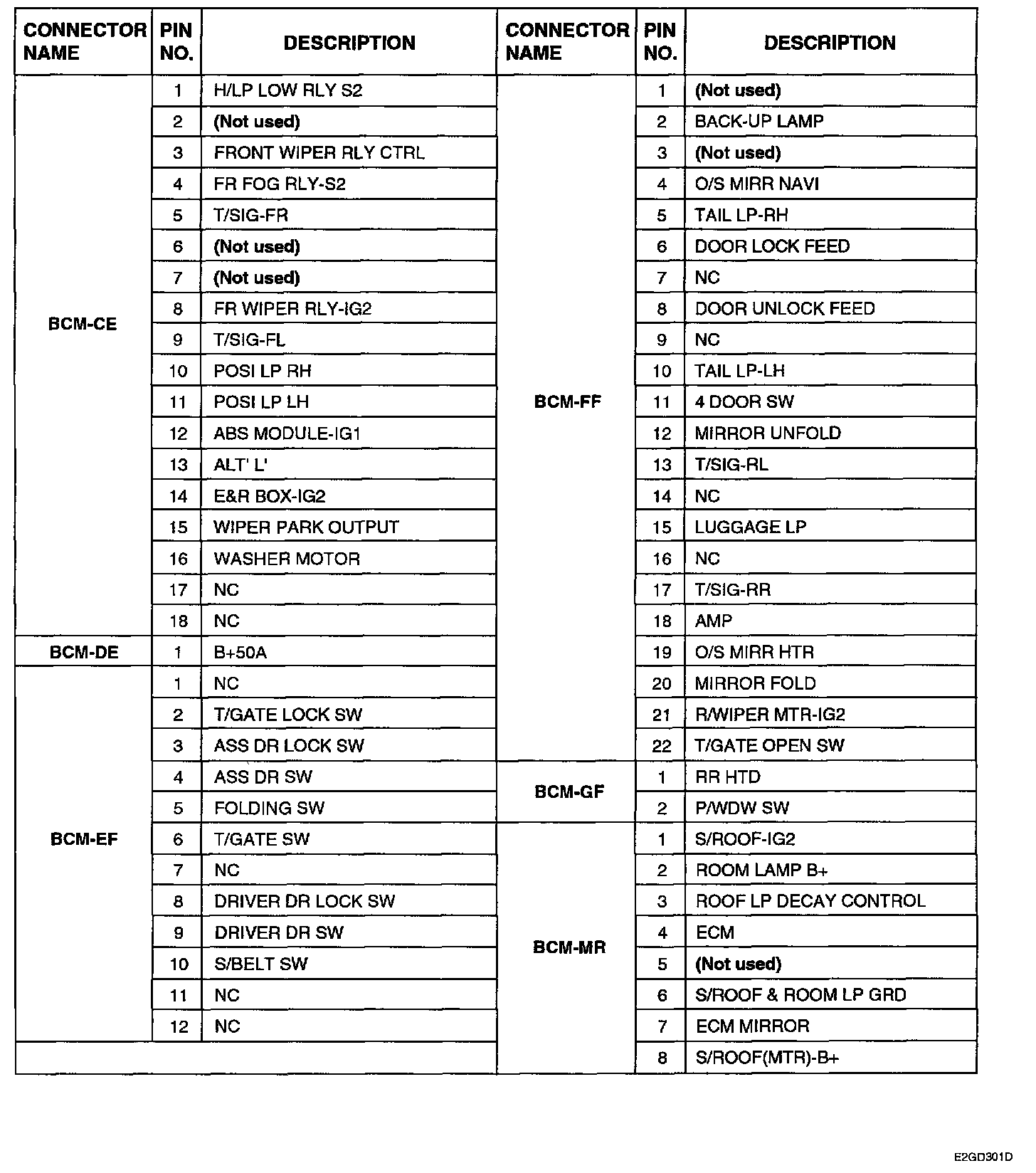

Body Control Module (BCM BOX) Circuit Details:
