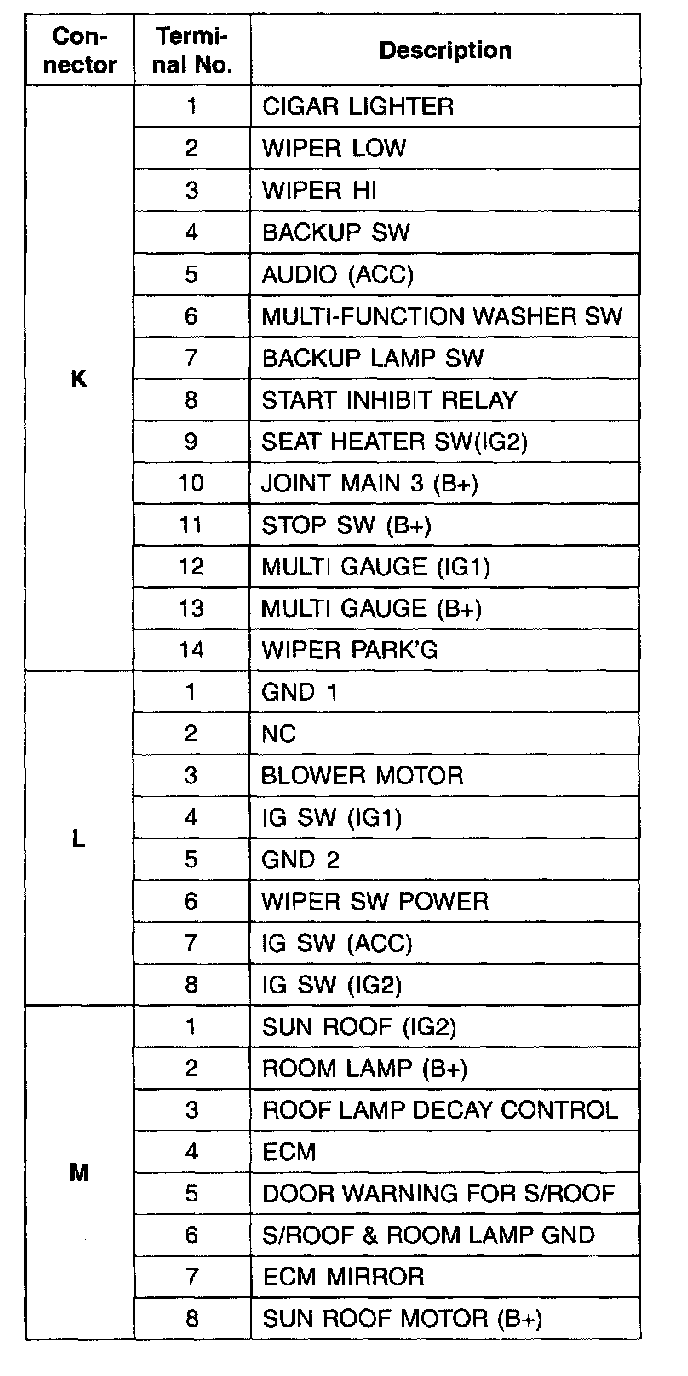

Timer/Control Unit, Accessory Control

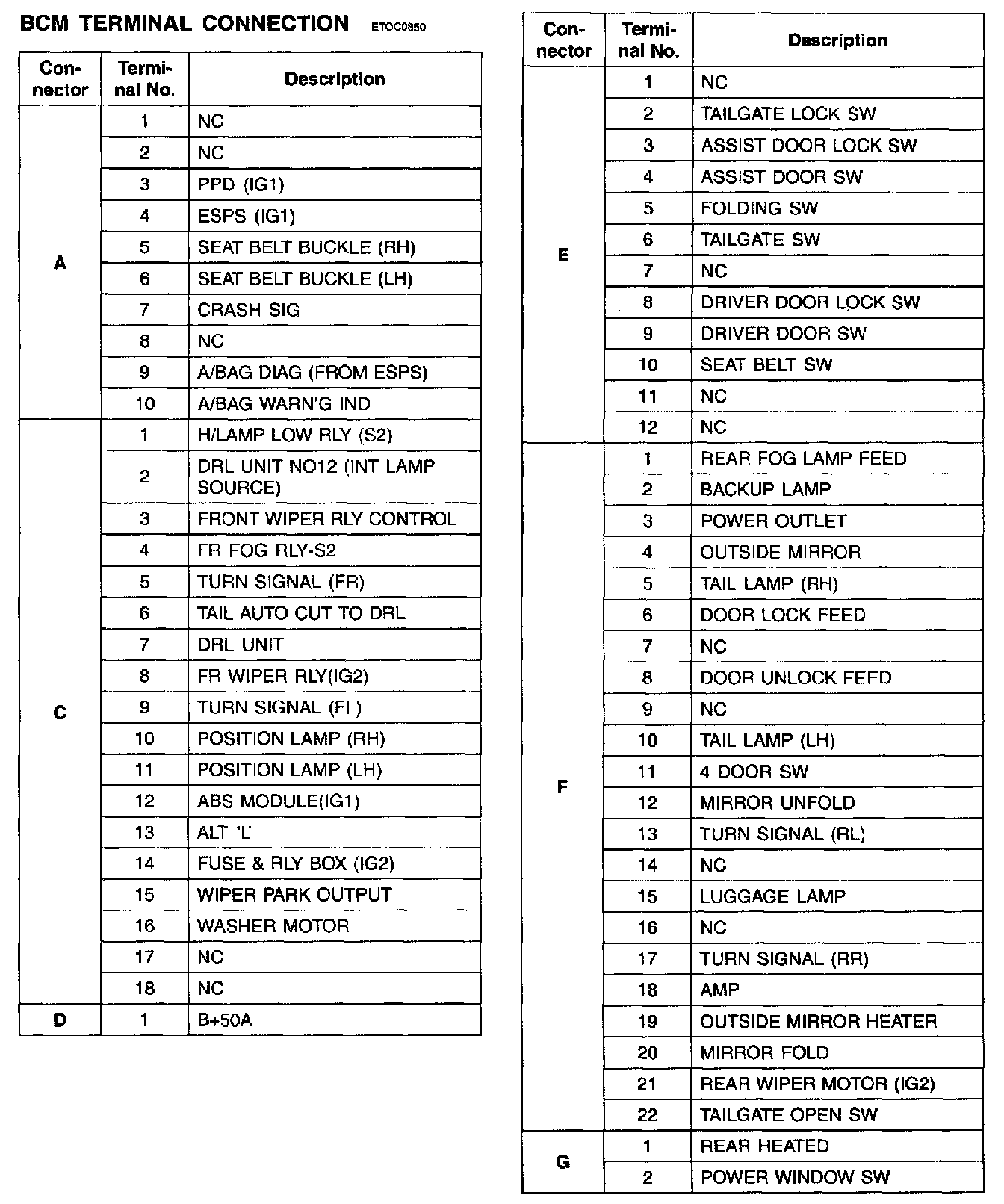

BCM Terminal Connection Part 1:

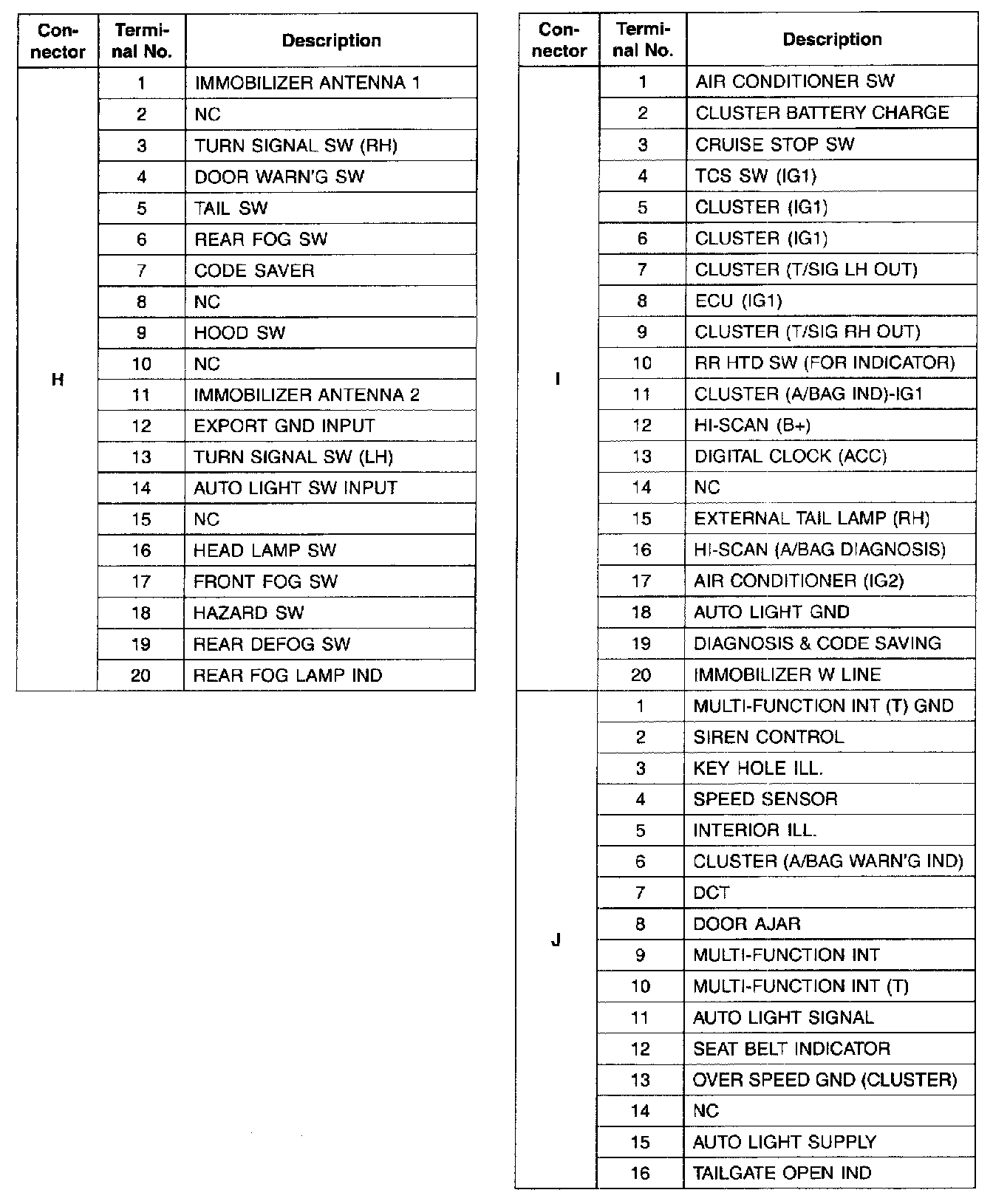

BCM Terminal Connection Part 2:



BCM Terminal Connection Part 3:

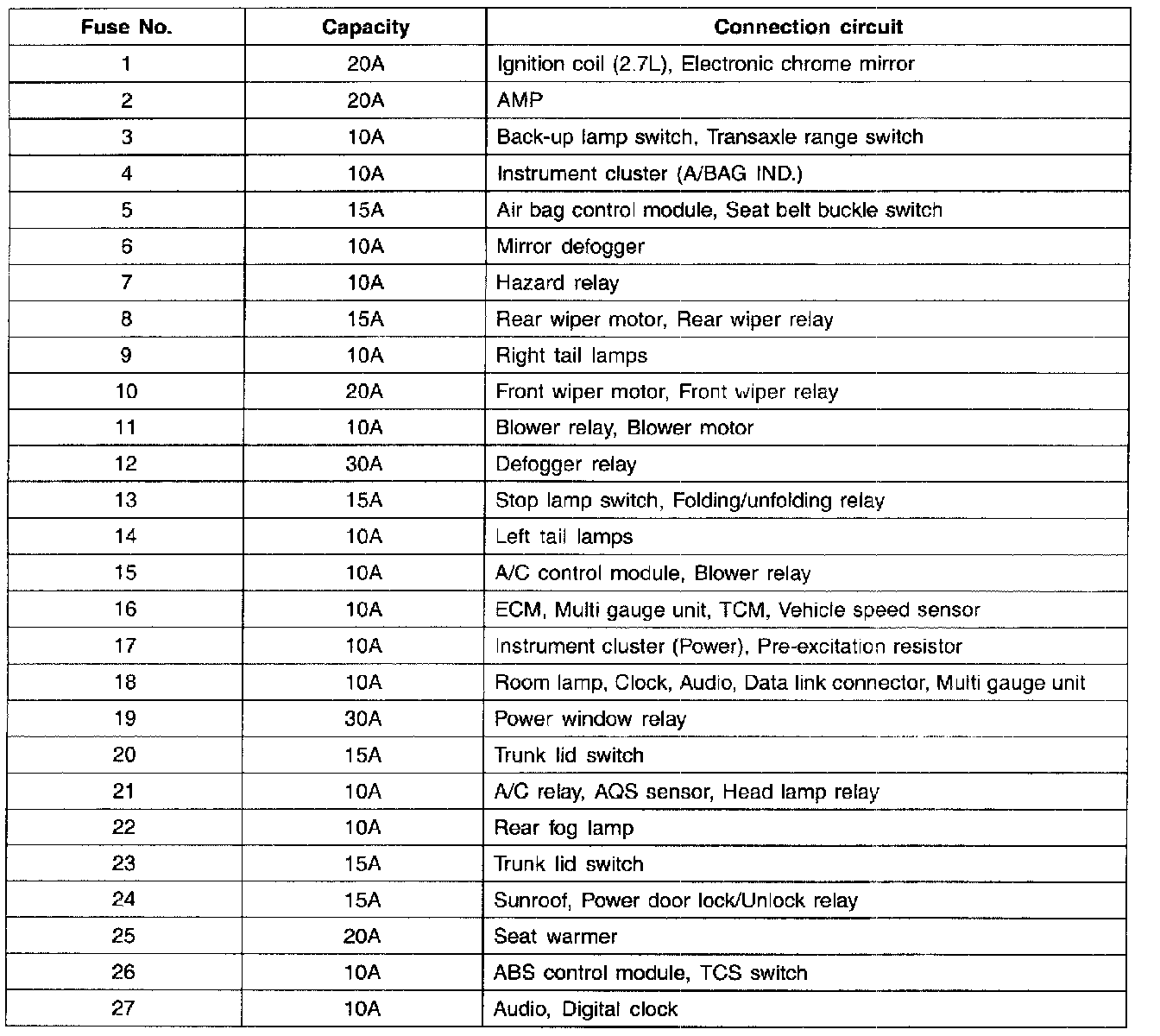

Fuse:
