Blower & A/C Controls (Manual)

Blower & A/C Controls (Manual) (1):

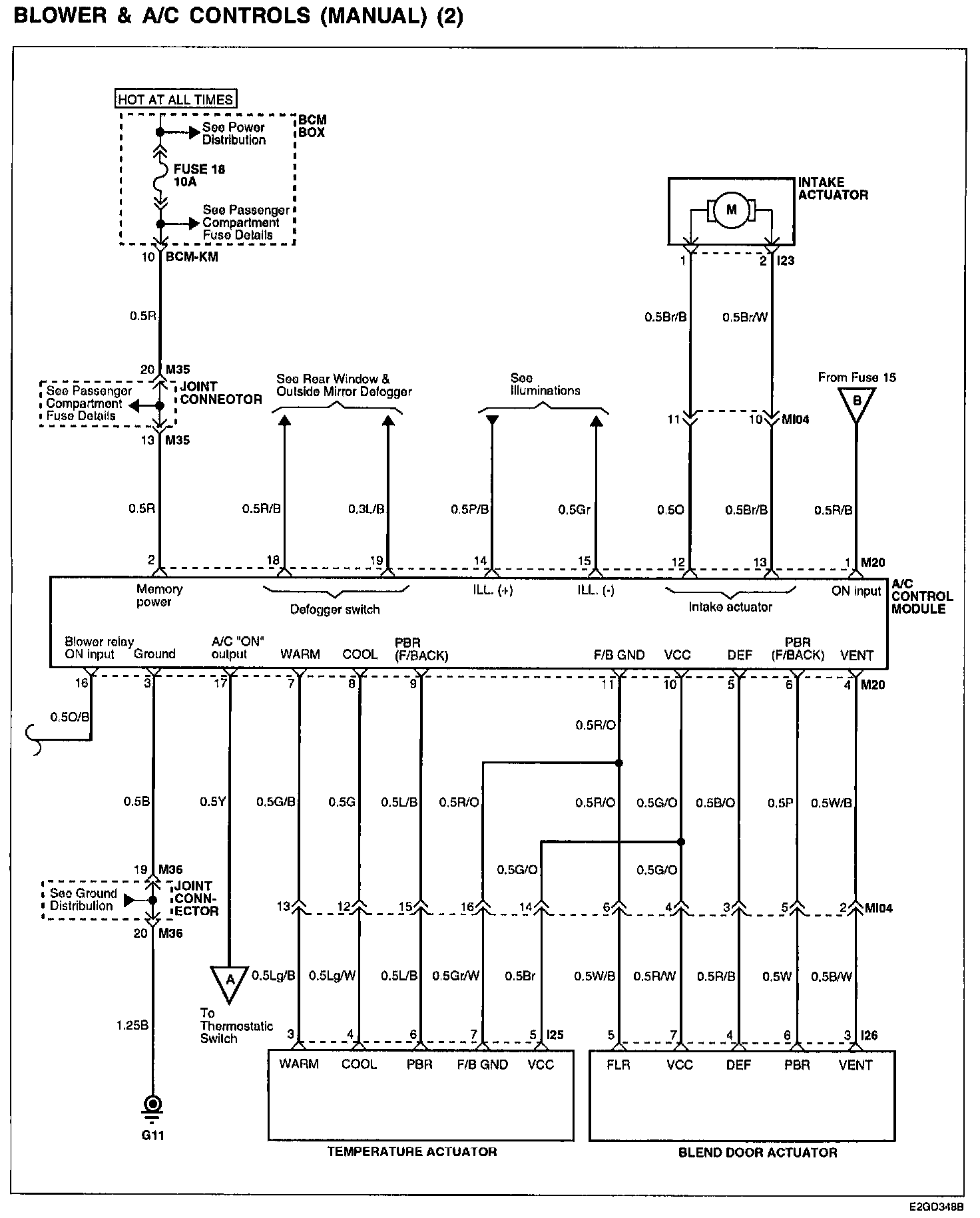

Blower & A/C Controls (Manual) (2):

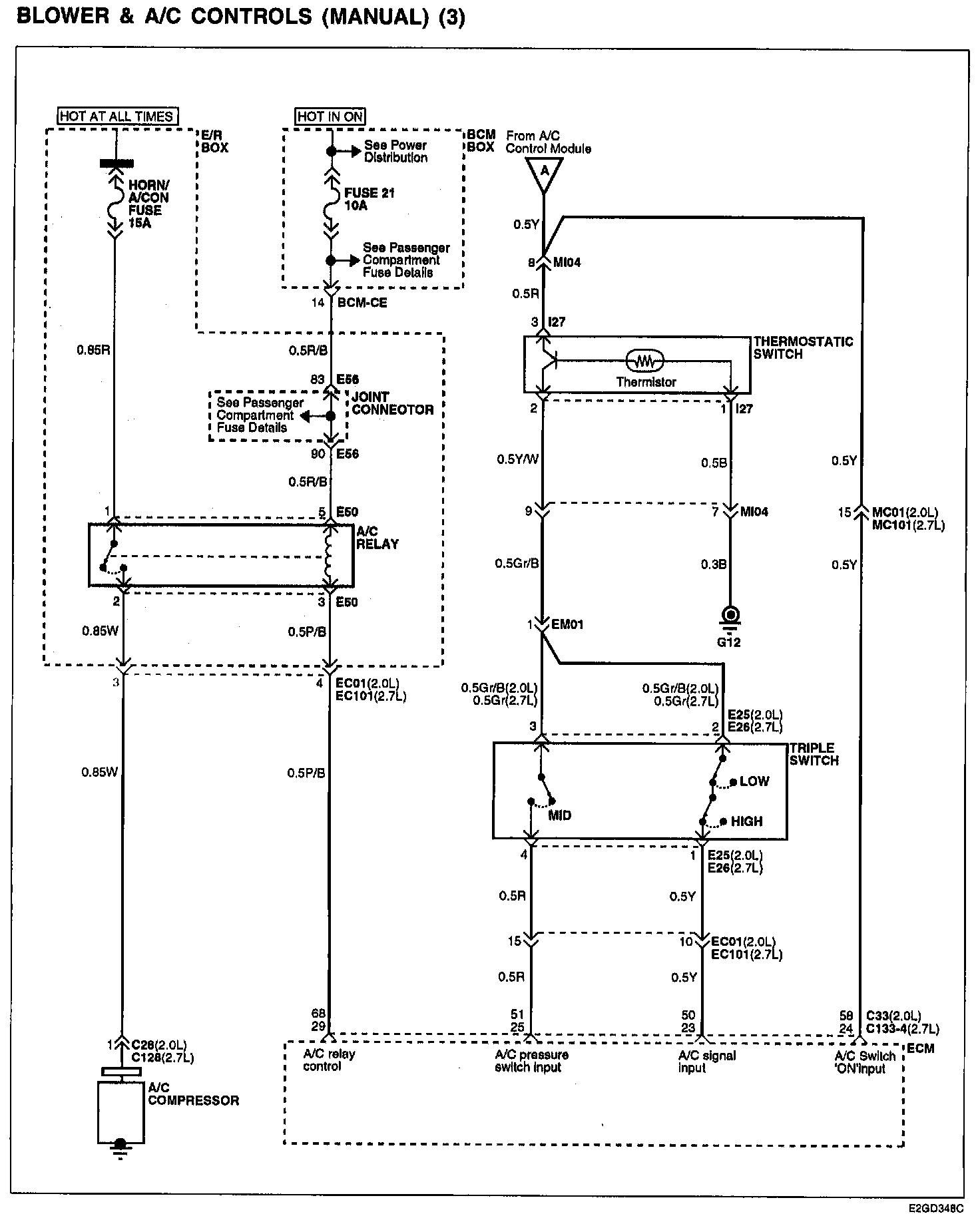

Blower & A/C Controls (Manual) (3):

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
