P0506

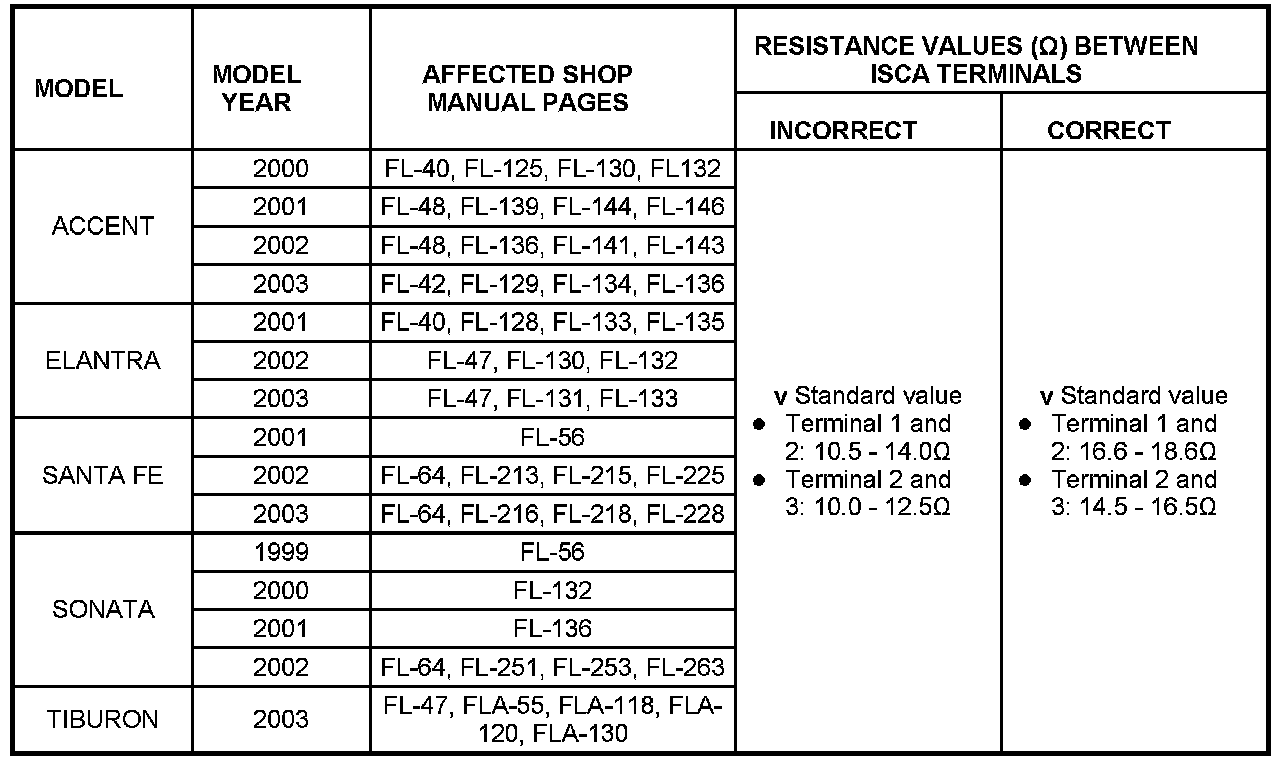

****Some values in these diagnostic procedures are incorrect, refer to the following 2 tables for updated values or to TSB - 03-36-024 for updated values****
DTC P0506 Idle Control System Rpm Lower Than Expected

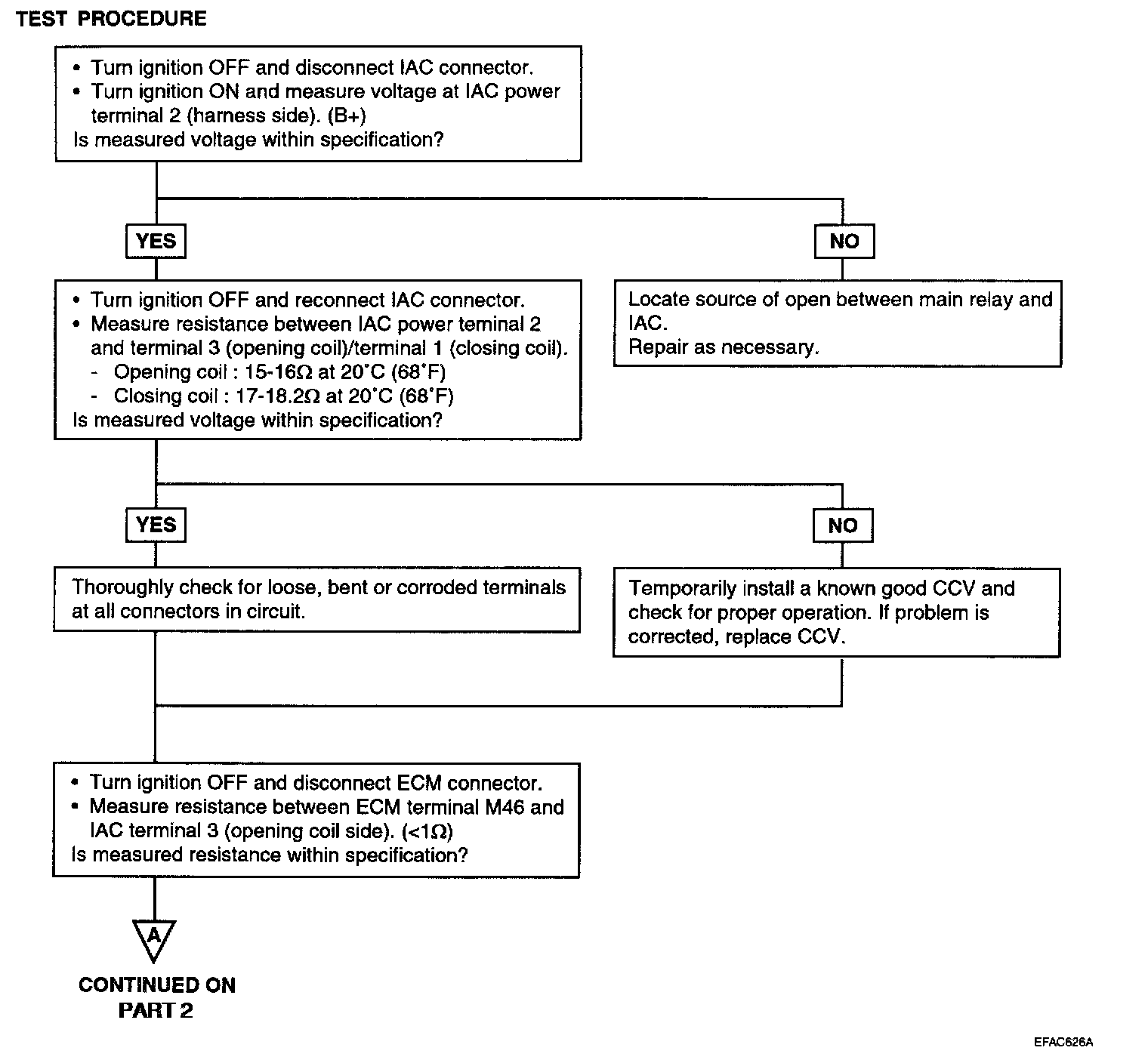

Test Procedure Part 1:

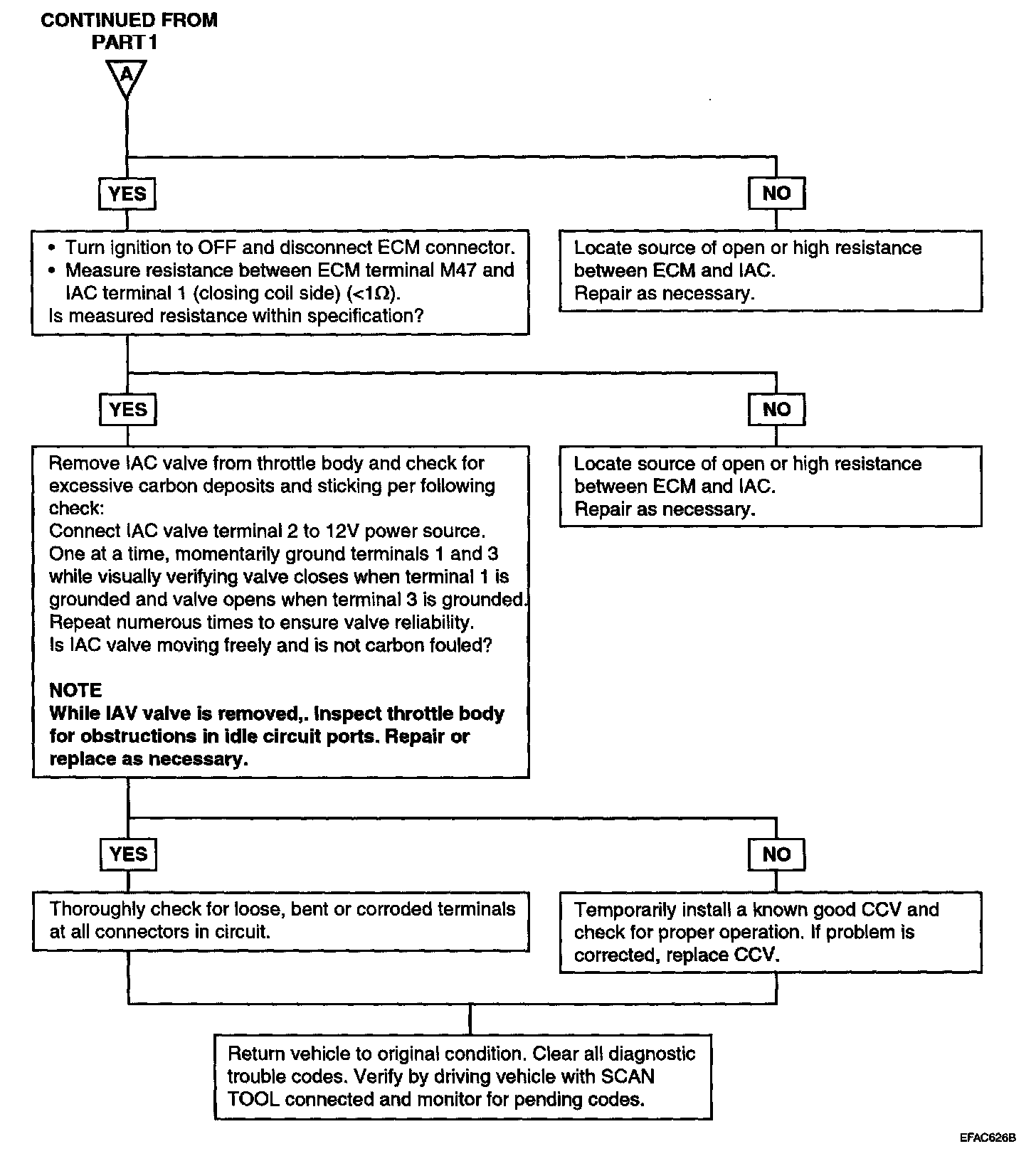

Test Procedure Part 2:
